Standard And Scout Length Rails

Standard And Scout Length Rails
$77.25
GGG-1002
In stock
+

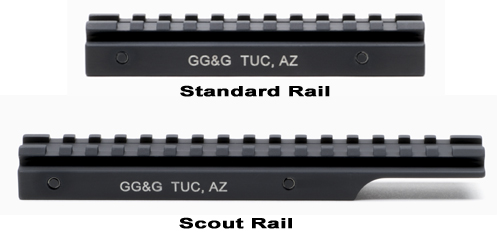

Standard And Scout Length Scope Rails:

These two GG&G optical mounting rails were designed to mount easily over the integral rails of the AR-15/M16 flat top receiver and work in conjunction with any of our back up iron sights. The rails mounting brackets raise the line of sight by 1/2 inch, to offer a proper cheek weld when optical devices are attached. In addition, they serve to protect the flat top receiver's integral rails from the damaging wear associated with lever type quick-release mounts, especially those without buffer pads. The GG&G Scout Rail extends two inches beyond the upper receiver and cantilevers over the handguards including the M4 forearm. It was developed to accommodate long-eye-relief "scout"-type scopes and Aimpoint red dot sights with night vision monocular mounted to their rear. The Standard Rail is employed mainly as a riser for conventional optical sights. When mounted with a GG&G back up iron sight, it is flush with the end of the receiver.
Both the Standard and Scout length mounting rails are manufactured in the USA at our Tucson, Arizona factory. Because these AR-15 and M-4 rail mounting systems are used in combat situations, they are designed and tested extensively before they are sold.
GG&G American Made


Scout Length Scope Rail Specifications:

  • The GG&G AR Scout Length Scope Mount attaches directly to the flat top receiver.
  • Raises line of sight by 1/2 inch.
  • Works with GG&G’s MAD or A2 rear back up iron sights.
  • Offers the proper cheek weld height when used with optics.
  • Protects receiver’s integral rails from wear or damage.
  • Overall length is 7 inches.  Extends 2 inches over the handguards and will clear Mil-Spec M4 handguards.
  • The dovetail is manufactured to MIL-STD-1913.
  • Full length sidebar provides positive and perfectly aligned lock up even on worn or out of spec upper receivers.
  • Materials: CNC Machined from tough but light weight 6061-T6 billet aluminum.
  • Finish: Type III hard coat anodized non-reflective matte black per Mil-Spec.
  • Weight: 4.3 oz
  • Warranty: Lifetime.
  • Made In America By Men And Women Proud To Be Americans!


Standard Length Scope Rail Specifications:

  • The GG&G Stanadard Length AR Scope Mout attaches directly to the flat top receiver.
  • Raises line of sight 1/2 inch.
  • Works with GG&G’s MAD or A2 rear back up iron sight.
  • Offers proper cheek weld height when used with red dot & conventional optics.
  • Protects receiver’s integral rails from wear and damage.
  • The Scope Mount is 5 inches long.
  • The dovetail is manufactured to MIL-STD-1913.
  • Full length sidebar provides positive and perfectly aligned lock up even on worn or out of spec receivers.
  • Materials: Manufactured from rock solid billet 6061-T6 aluminum alloy.
  • Finish: Type III hard coat anodized non-reflective matte black per Mil-Spec.
  • Weight: 3.9 oz.
  • Warranty: Lifetime.
  • Made In America By Men And Women Proud to Be American!
