PVS-14 Quick Detach
Multi-Flex Night Vision Mount
Go From Helmet Or Head Mount To Weapons Mounted In Seconds

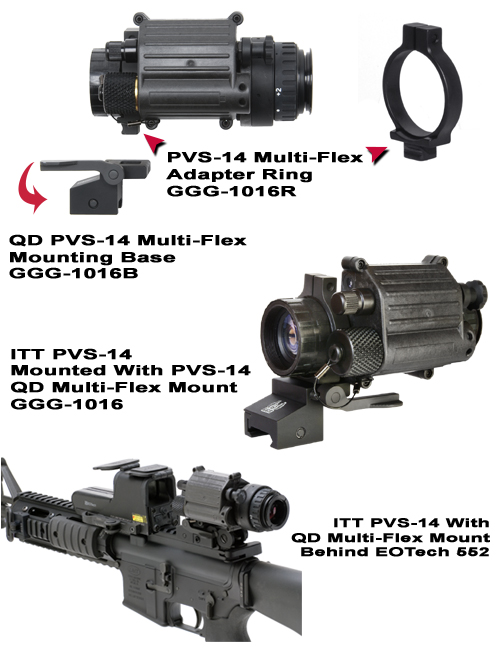

The PVS-14 Quick Detach Multi-Flex Night Vision Mount for the ITT PVS-14 series of night vision monoculars, is designed to go rapidly and easily from a head/helmet mount or hand surveillance mode to a weapon mount. Once the ergonomically designed base is installed on the weapon and the adapter ring is installed to the PVS-14, just the rotation of the grooved locking lever will rigidly lock the PVS-14 into place. Just as quickly, it can be removed and used to meet the tactical situation. Our unique QD PVS-14 adapter ring remains attached to the night vision monocular at all times and interfaces with the weapon’s mount in mere seconds. Unlike other products on the market, the removal of mount components is not required to quickly and directly attach the PVS-14 to a head or helmet mount. This flexibility and versatility is essential in tactical encounters. The QD Multi-Flex Base with its smooth operating latching system, permits optical co-alignment with night vision compatible red dot sights, such as the Aimpoint or EOTech that are mounted in front of the night vision scope.
The PVS-14 QD Multi-Flex Mount provides the correct height to co-align with the Aimpoint Comp Series of optics when mounted in either of the GG&G Aimpoint Cantilever Rings as well as when mounted in the Aimpoint QRP ring with the spacer. It will also co-align with most night vision compatible EOTech optics when they are mounted directly to the upper receiver. The PVS-14 QD Multi-Flex Base is a multi-use unit. Besides the PVS-14 night vision monocular Adapter Ring, it will also accept the Aimpoint 3X Magnifier when equipped with the GG&G 3X Adapter Plate.
The PVS-14 QD Multi-Flex Night Vision Mount is fully compatible with MIL-STD-1913 dovetails. All parts are manufactured from ordnance steel and aerospace 6061 T6 aluminum and are finished matte black to mil-spec. For federal and military purchases the NSN number is NSN 5855-01-494-8838
The PVS-14 Adapter Ring and Multi-Flex Base can be purchased seperately.
