Aimpoint 3X Magnifier Quick Detach Multi-Flex Base And Adapter
For Aimpoint 3X Magnifier And ITT PVS-14 Monocular

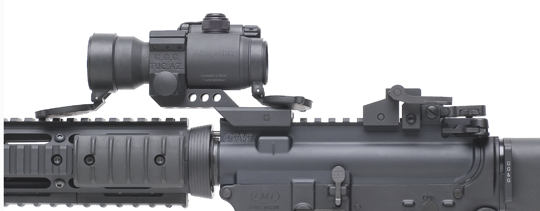

The Aimpoint 3X Magnifier can be used in conjunction with all Aimpoint scopes for long range aiming, but when coupled with the GG&G Quick Detach 3X Adapter and Quick Detach Multi-Flex Mounting Base, it can be removed in just seconds for CQB situations. Not only will this set up work with Aimpoint optics, the GG&G Quick Detach Multi-Flex system also allows the Aimpoint 3X Magnifier to be used affectively behind an EOTech scope as shown in the above photograph. Adding to the overall flexibility of the GG&G system, the ITT PVS-14 Night Vision Monocular can be installed directly into the QD Multi-Flex Base for night targeting.
The GG&G Quick Detach Multi-Flex Mounting Base is designed to accept both the GG&G Aimpoint 3X Adapter and the GG&G Mounting Ring for the ITT PVS-14 night vision monocular. The base is fully compatible with MIL-STD-1913 dovetails. As can be seen in the photos, the Quick Detach Multi-Flex Mounting Base and Aimpoint 3x Magnifier set up is best used behind the Aimpoint scopes when they are mounted in a mount such as the GG&G Aimpoint Cantilever Ring or an Aimpoint QRP mounting ring.
The GG&G Quick Detach Multi-Flex Mounting Base is manufactured from 6061 T6 billet aluminum alloy and Type III hard anodized matte black per mil-spec. The Aimpoint 3X Adapter as well as all other steel components are manufactured from 4140 ordnance steel and manganese phosphated matte black per mil-spec.
All Components of the GG&G QD Multi-Flex Mounting system can be purchased separately.
